Flexible metal hoses

Contact

Corrugated hoses are thin-walled, cylindrical components with a corrugated structure in their lateral area. The type of corrugation differentiates annularly corrugated hoses and coil corrugated hoses.

Stripwound hoses are produced in a continuous process by profiling and helical coiling of a cold-rolled metal strip on a mandrel.

Corrugated Hoses Overview Image Text

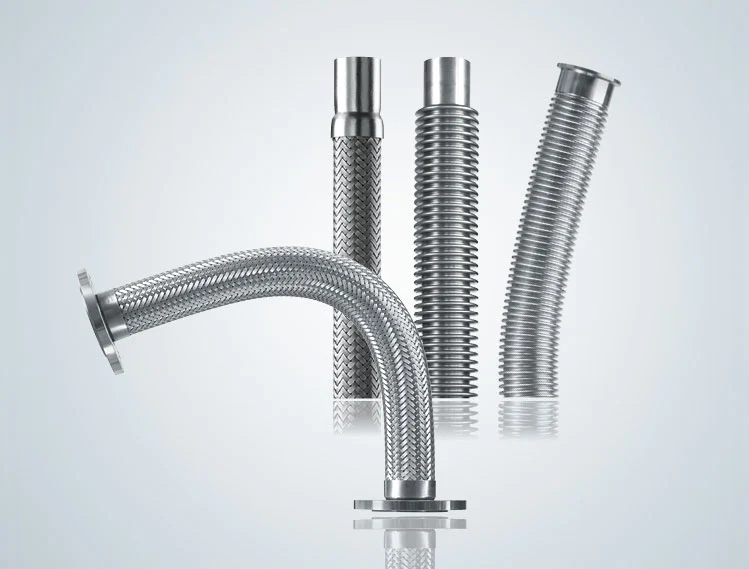

HYDRA® Corrugated Hoses

Corrugated hoses are manufactured from various materials with a corrugated profile.

  • standard dimensions from DN 6 to DN 300
  • for temperatures from -270 °C to max. 600 °C
  • pressure resistant and leakproof
  • with PTFE lining for highly aggressive media
  • various connection fittings available
Learn more
Stripwound Hoses Image Text

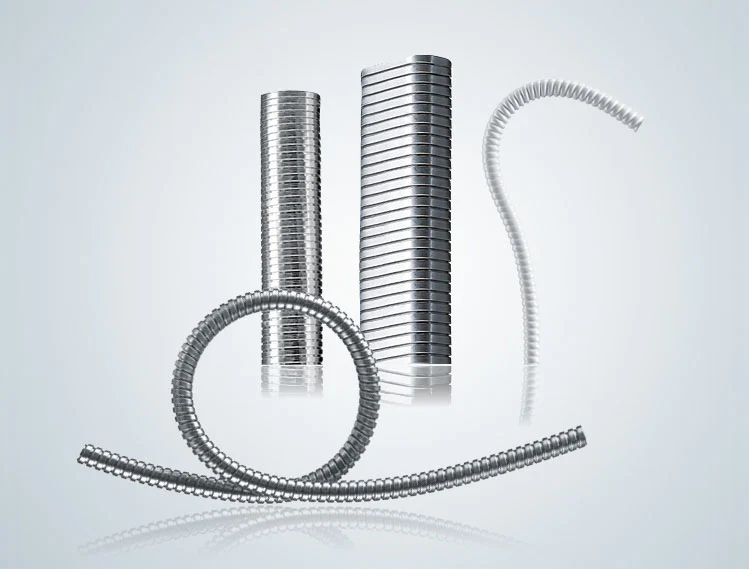

HYDRA® Stripwound Hoses

Stripwound hoses are manufactured from a profiled strip that is coiled spirally so that it interlocks.

  • good flexibility
  • high mechanical strength
  • free from vibrations
Learn more
Sanitary Hose Outles Image Text

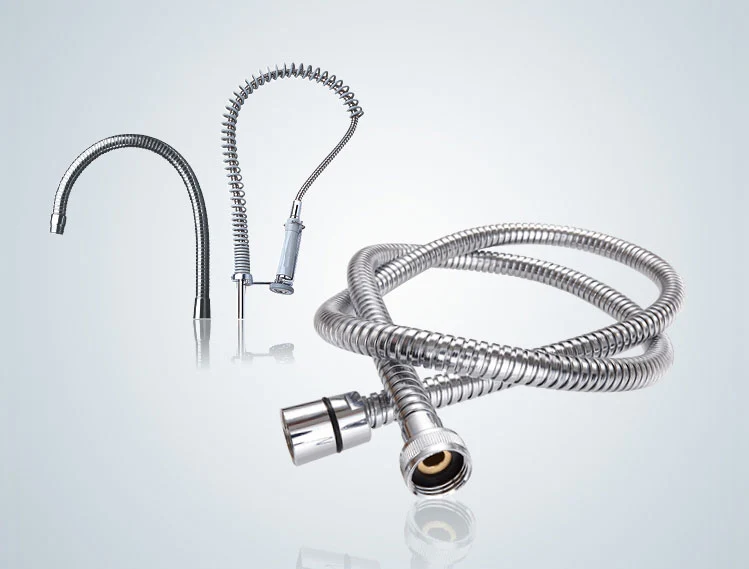

HYDRA® Sanitary Hoses

Diverse product range for kitchen and bathroom applications

  • continuous trouble-free use
  • high flexibility with maximum robustness
  • worldwide drinking water approvals
Learn more

Next steps

Configure product

Configure products for your individual needs quickly and easily with our FLEXPERTE tool.

Details:

  • Design of Standard Products
  • Preparation of Technical Data Sheets
  • Preparation of Enquiries

Download: FLEXPERTE customer version

FLEXPERTE: The design programme for the entire product range of the Witzenmann Group with a function-specific classification

  • Flexible metal hoses
  • Expansion joints
  • Metal bellows
  • Bearings, hangers, supports

Apart from the calculation formulas, drawing data as well as entire 3D CAD drawings are stored. Provided with PDS and PDMS interfaces, the program can be used multifacetedly and universally.
